Power Regulator
Heat Treatment Regul

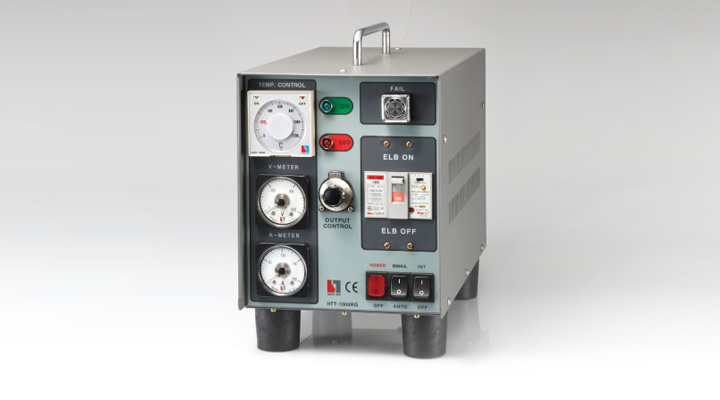

HTT-1000RG
Equipment Specifications
| Item | Specification | |
|---|---|---|
| Power Source | AC 440V 50/60Hz 2P | |
| AC 220V 50/60Hz 2P | ||
| Control Output Power | AC 0∼440V / 0∼135A (60KVA MAX) | |
| AC 0∼220V / 0∼135A (30KVA) | ||
| Internal Temp Controller | Sensing Range | 0∼1200℃ Type K |
| Control Type | ON/OFF | |
| Program Controller | Order | |
| Control Type | ON/OFF (SCR Phase Control) | |
| External Input | Relay Input (ON/OFF) | |
| Safety System | Over Load Protector (150A Limit/Alarm) Ground Fault (100, 200, 500mA) |
|
| Cooling System | Air Fan Cooling | |
| Insulation Resistance | 200MΩ Minimum (600V DC Megger Test) Ground Electric Leak (100mA) |
|
| Operating Humidity | 35∼85% RH (No Condensation) | |
| Operating Temperature | 0∼45℃ (Without Freezing) | |
| Dimension | 220mm(W) x 410mm(D) x 355mm(H) | |
| Weight | 14.6Kg | |
Identification of equipment

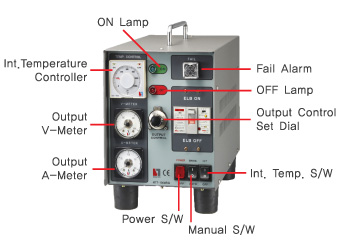

- Front View

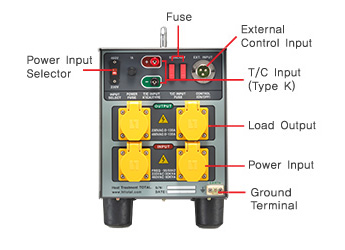

- Back View
