Research and Development
Development Title
Temperature control equipment for heat treatment equipment / Number : 10-1467541
Development Content
As by heat treatment device control the temperature of the heater, and also relates to a temperature control device for the heat treatment device to control with the power of a temperature recorder, the offset noise of the power to be supplied to the internal circuit of the temperature control unit by the circuit stable to provide the power and the heat treatment step is completed when a predetermined power-off and at the same time the hit ray Tempe power regulators to cut power to the burner so that a waste of recording paper, and also mobile equipment to install a protective cover on the front and used during installation to avoid damage to the control panel and also provided with the functionality to minimize the entry of foreign matter particles, as well as performing a heat treatment in a wide temperature range of the material to ever controlled by the time stamp and the staff mode setting switch 5 Cozaar is to provide temperature control equipment for the heat treatment device to.
Developed Content
- Installing a power supply noise rejection circuit on the input side, the noise rejection circuit inlet side of a power transformer and the lottery this connection, lottery transformer and electrically connected to contain noise filters, noise filters down transformer electrically connected configuration to minimize the noise generated from the power source must be entered so that stable operation of the temperature control device is guaranteed.
- Installing a power supply noise rejection circuit on the input side, the noise rejection circuit inlet side of a power transformer and the lottery this connection, lottery transformer and electrically connected to contain noise filters, noise filters down transformer electrically connected configuration to minimize the noise generated from the power source must be entered so that stable operation of the temperature control device is guaranteed.

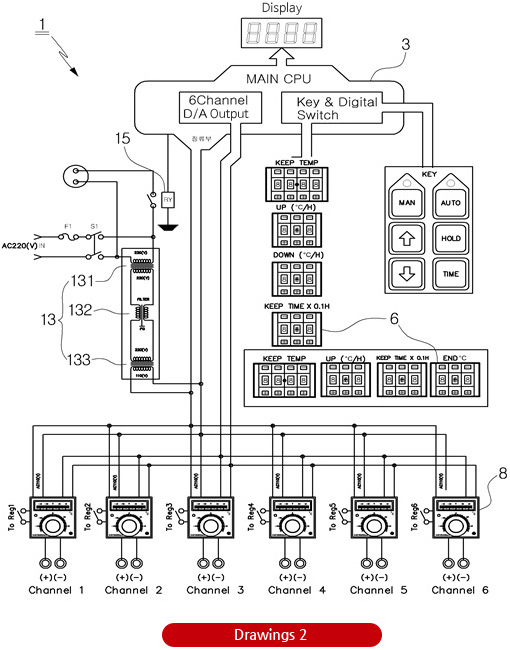

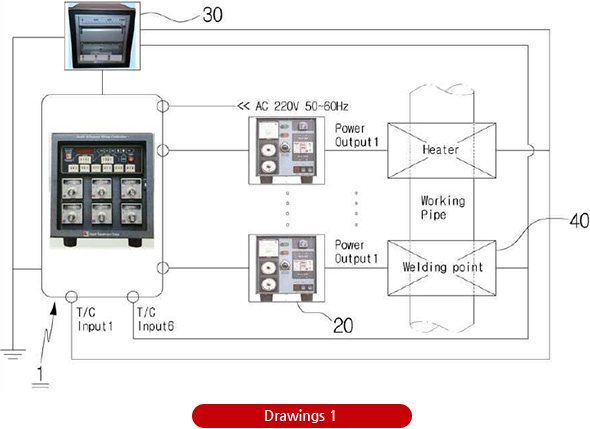

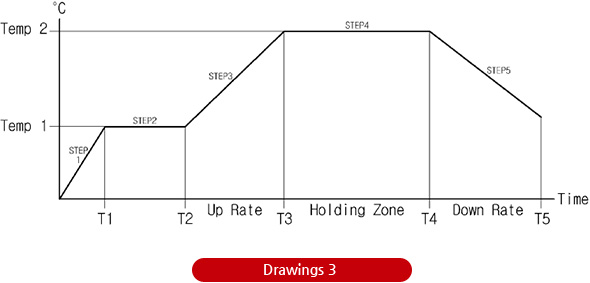

Drawings View
Development Title
Heat treatment equipment for improved electrical safety / Number : 20-0474911
Development Content
Relates to a thermal processing unit (voltage regulator) to provide a stable voltage to the electrical heater for receiving the object to an external power source to heat the heat treatment, the structure of the output connector, the power is output to the input connector and the electric heater according to the external power input to improve electrical safety hazard and will short-circuit the one from electric shock in order to ensure the safety handle that wishes to provide an improved heat treatment equipment. That is, the present invention is to have a heat treatment device which is provided with an output connector for outputting the power to the input connector and the electric heater according to the external power supply to the back.
Developed Content
- The input connector is installed in the fitting hole and the pin terminal case of an insulating material outlet portion and configured to be coupled to a bolt on the back, the pin jack socket terminals are fitted with built-plug configured, installed, and configured as part of an insulating material so that the coupling ball is fitted.
- The output connectors are installed, and a built-in socket terminal constituted by an outlet portion, and the flux combined is fitted in the socket terminal pin terminals configured to be coupled to a bolt in the body of an insulating material, and; And the socket terminal coupled to a flux of said input connector, in front of the socket terminal coupled to the outlet portion of the output connector will prevent the formation of a short circuit, space.

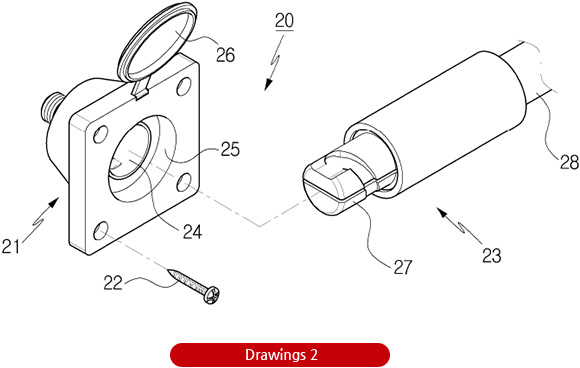

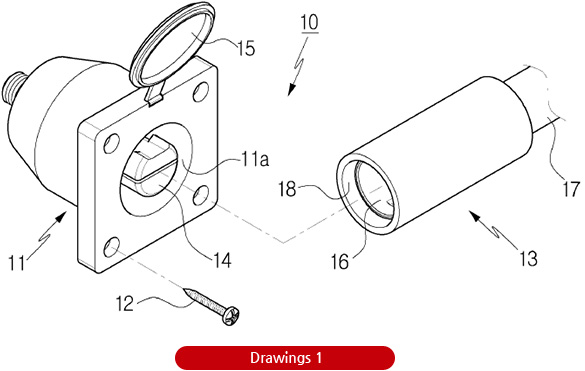

Drawings View
