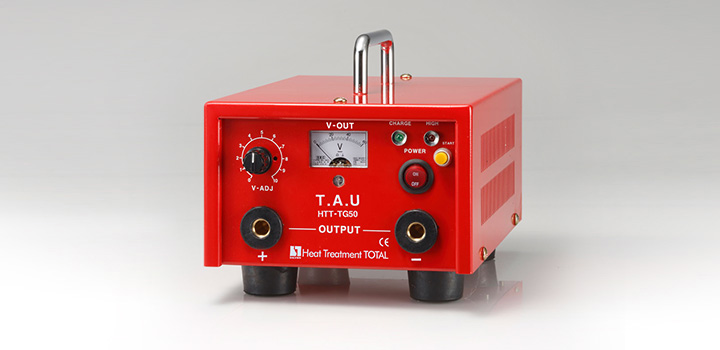

Thermocouple Welder
Thermocouple Welder Price
HTT-TG50
Equipment Specifications
| Item | Specification |
|---|---|
| Power Source | AC 220V 50/60Hz 2P 35VA MAX |
| Output Power | DC 0∼ 50V |
| Capacity | 22,000uF/50V |
| Thermocouple type | Multi-Type |
| Charging Time | Over 8Hr |
| Battery type | Ni-Cd 12V/1.3Ah |
| Wire Size | 0.23, 0.67, 0.71mm |
| Dimension | 180mm(W)×262mm(D)×178mm(H) |
| Weight | 5.1Kg |
Identification of equipment

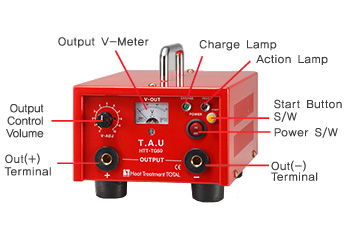

- Front View

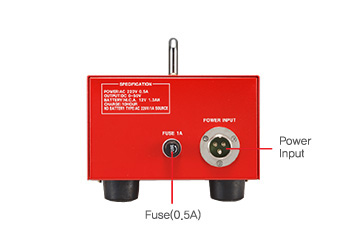

- Back View
Components
- ① Power Cord
- ② Working Plier
- ③ Ground Magnetic

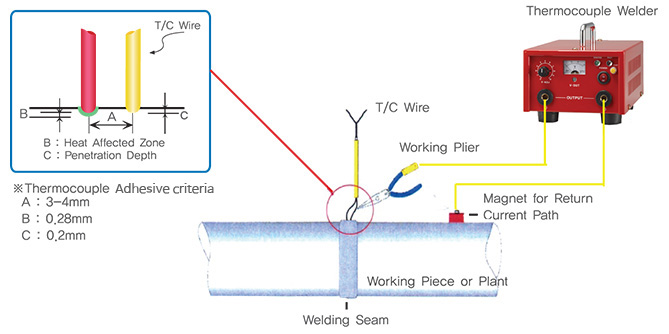

Components How to Us
