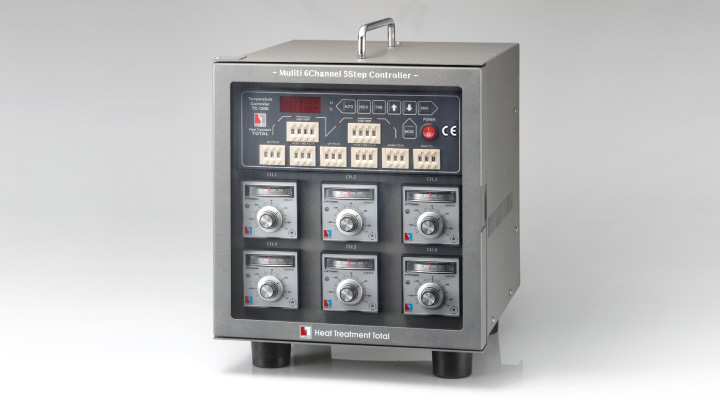

Programmable Temp. Controller 6Ch
Heat Treat Specifications
HTT-PGC6A-5S(5Step)
Features
- Go arbitrarily portable and easy to install.
- Programmable Temperature Loading & Unloading function.
- A work program is set to the first pattern ease of operation.
- Since the temperature difference analog volume control is easy to use manner.
- Enter a surge protector device equipped with stability.
Equipment Specifications
| Equipment | Item | Specification |
|---|---|---|
| Program Control Unit |
Power Source | AC 220V 35VA |
| Output | 0∼50mV/6Ch (Type K) | |
| Pattern | 1Pattern | |
| Step | 3Step, 5Step Double Use | |
| Loading Temp (5Step) | 0∼999℃/Hr | |
| Loading Keep Temp (5Step) | 0∼1200℃ | |
| Unloading Temp (5Step) | 0∼999℃ | |
| Up Rate | 0∼999℃/Hr | |
| Keep Temp | 0∼1200℃ | |
| Keep Time | 0∼99.9Hr | |
| Down Rate | 0∼999℃/Hr | |
| Dimension | 330mm(W) × 361mm(D) × 430mm(H) | |
| Weight | 18Kg | |
| Differential Controller |
Power Source | AC 110V 5VA |
| Input | Type K(CA) | |
| Output | Relay Contact Output(AC 250V 5A) | |
| Control Scale | -20∼50℃ | |
| Analog Output Adjustment Range | +2℃ | |
| Indicator Output | ON/OFF (Green/Red) |
Identification of equipment

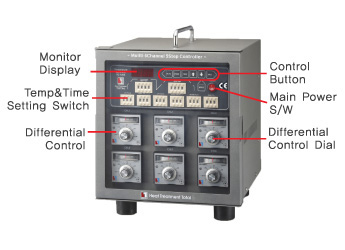

- Front View

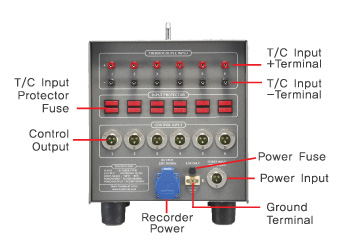

- Back View
Components
- Power Cable
- Sensor Cable
Installation Diagram
